Strange New Worlds Starfleet Duty Uniforms – Medical Lab Coat & Jumpsuit

Sciences Division, circa 2259

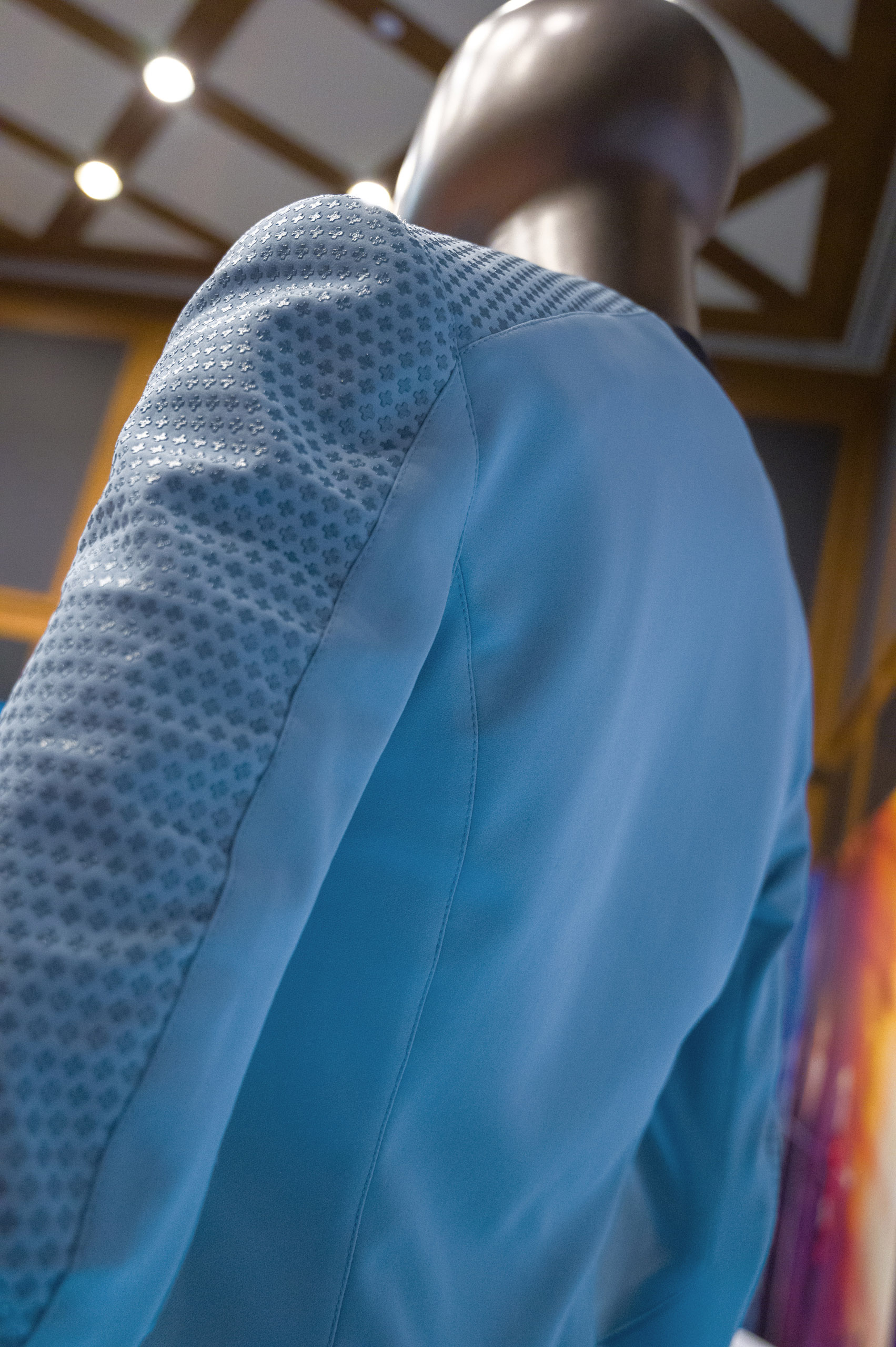

For wear by medical personnel while performing their duties in a hospital, laboratory, or assigned facility aboard starships as well as ground and space-basted Starfeleet installations. Like the standards sciences division duty uniform, the assigned division is depicted via the uniform tunic’s prevailing blue color. A lighter shade of blue distinguishes this variant, with the wearer’s rank denoted by the stripes on the tunic’s sleeves.

This uniform is worn by actor Babs Olusanmokun for his portrayal of Doctor M’Benga. It is a creation of costume designers Bernadette Croft and Gersha Phillips and the Star Trek: Strange New Worlds costume department.

Medical Sciences, circa 2259

For wear by medical personnel while performing their duties in a hospital, laboratory, or assigned facility aboard starships as well as ground and space-basted Starfeleet installations Unlike the lighter blue version of the standard sciences division uniform, this variant is authorized for wear only while on duty within a medical facility. The wearer’s rank is denoted by the stripes on the uniforms sleeves.

This uniform is worn by actress Jess Bush for her portrayal of Christine Chapel. It is a creation of costume designers Bernadette Croft and Gersha Phillips and the Star Trek: Strange New Worlds costume department.

Color Reference

Thanks to the Star Trek Costume Group on Facebook and an awesome member who snapped a photo of the actual Pantones used for the costumes. They were shared at Star Trek: Mission Chicago by the costume designer Bernadette Croft.

The official color for the lab coat is below. Additionally, Pantone sells individual fabric swatches for each of their colors directly on their website.

Medical Uniform Color Values

PANTONE

17-4023 TCX

BLUE HEAVEN

sRGB

91, 126, 152

HEX

#5b7e98

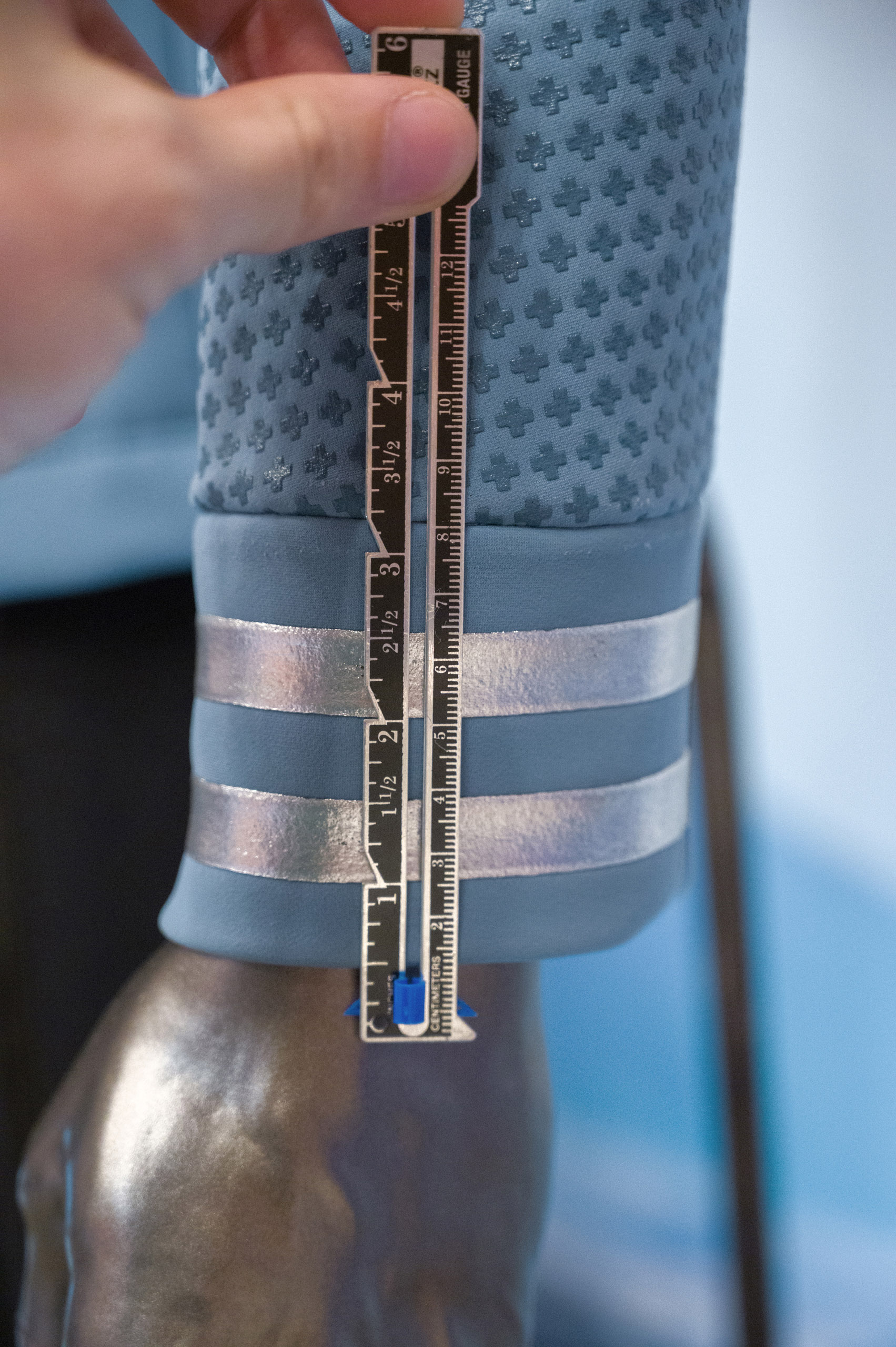

Measurements (Lab Coat)

Below is a table of the measurements I was able to to take. Some Imperial measurements are rounded.

ComponentMeasurement (cm)Measurement (in)
Collar Height2.81.125
Stripe Height (wide)1.30.5
Stripe Separation1.20.5

Cuff Opening to Stripe Offset1.40.5
Total Cuff Length6.72.625
Hem2.81.125
Pant Stripe (total)1.80.3
Pant Stripe (sateen)0.70.15
Fly Topstitching3.51.5

Measurements (Jumpsuit)

Below is a table of the measurements I was able to to take. Some Imperial measurements are rounded.

ComponentMeasurement (cm)Measurement (in)
Zip Pull Length2.10.875
Main Zip Width0.80.375
Pocket Zip Width0.80.375
Stripe Height (wide)1.30.5
Stripe Separation1.30.5

Cuff Opening to Stripe Offset1.40.5
Total Cuff Length6.32.5
Side Panel Stripe Width0.30.125
Side Panel Height (extrapolated)6.12.4

Division Fabric (Downloads)

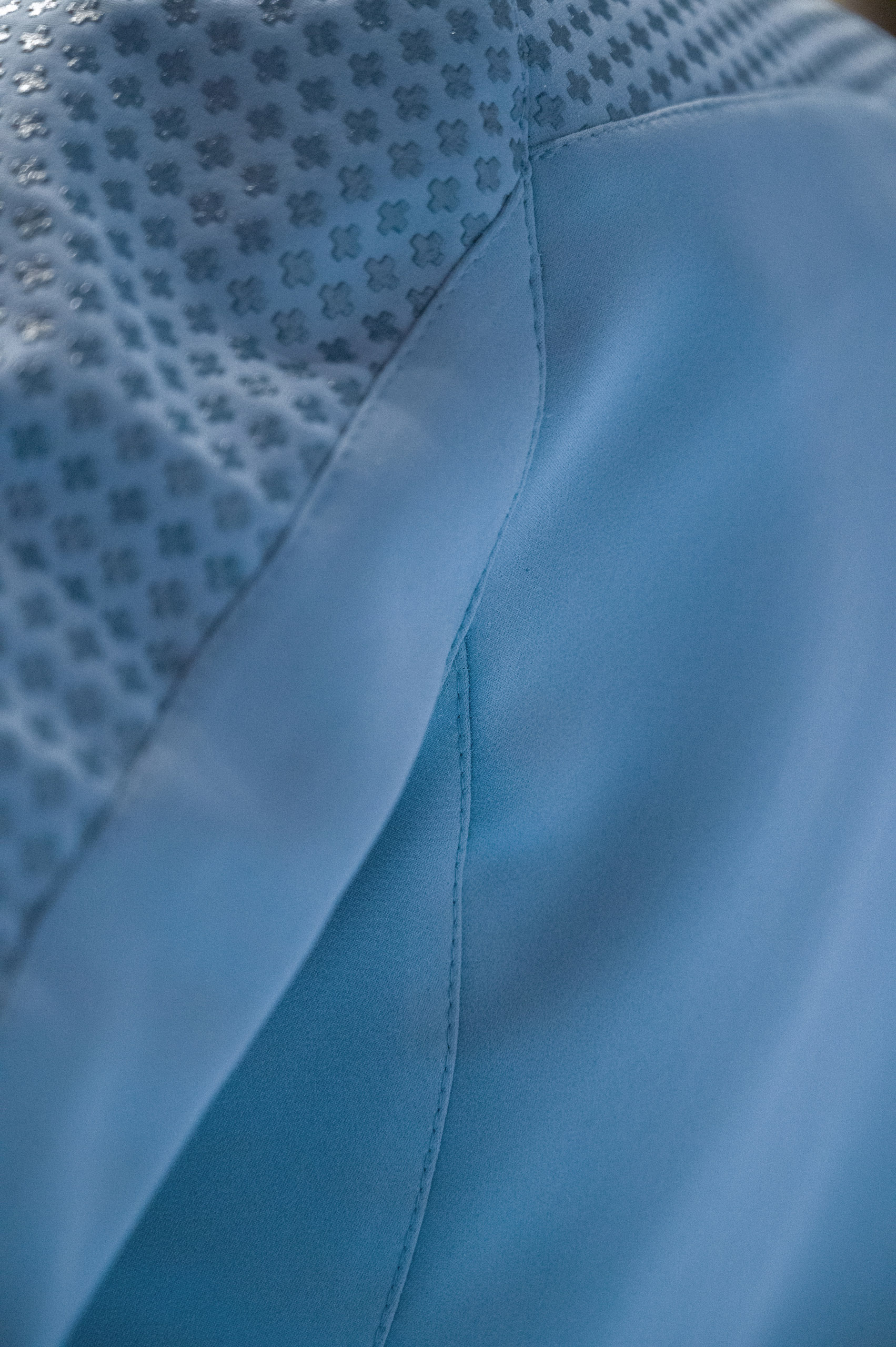

The raised superhero-esque print used on these uniforms sits much more flush with the fabric than the deltas on the Discovery uniforms. I scaled the image to actual size in Illustrator, then traced and averaged the pattern before tiling it. Since the fabric was not laying flat, I only based the traced pattern on stars in the center of the frame and closest to the ruler to minimize distortion. Below are tiled Illustrator files you can download. One large sized 30″x60″ and another smaller 8 1/2″x11″ sized. Print at 100%. Do not scale.

Medical Cross Pattern Downloads

The Details

All I could snag was a shot of the zipper. The magnetic clasp at the top was very strong and I didn’t dare try and open anything further.

Full Resolution Photos (Download)

Can’t get enough? Here’s a google drive link where you can download full resolution photos of everything in this post and the other uniforms I photographed during the exhibit.
